Logic Circuits

Logic Gates

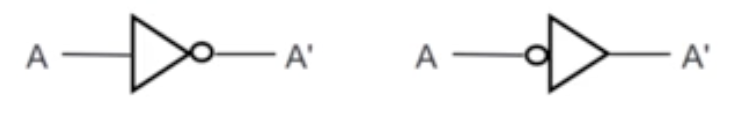

Inverter (NOT Gate)

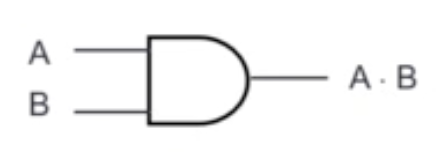

AND Gate

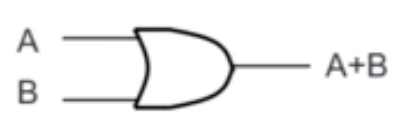

OR Gate

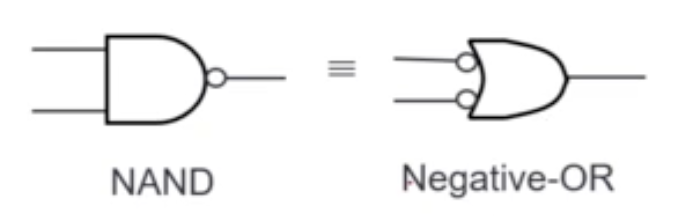

NAND Gate

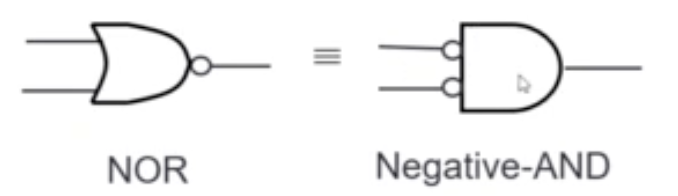

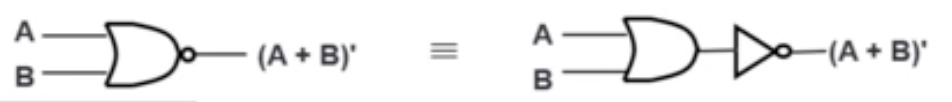

NOR Gate

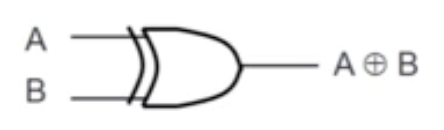

XOR Gate

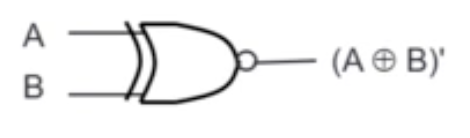

XNOR Gate

Logic Circuits

• Contain logic gates
• Fan-in: the number of inputs of a gate.
  • Gates may have fan-in more than 2

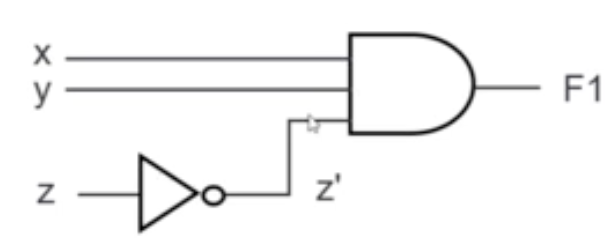

Given a boolean expression, we may implement it as a logic circuit. e.g. $F1=x\cdot y\cdot z^{\prime }$

•

Universal Gates

AND/OR/NOT gates are sufficient for building any Boolean function.

• They are known as a complete set of logic
• Other gates are used for:
  • Usefulness (e.g. XOR gate for parity bit generation)
  • Economical
  • Self-sufficient (eg: NAND/ NOR gates)

NAND Gate

• is also a complete set of logic
• Proof by building NOT/AND/OR using only NAND gates

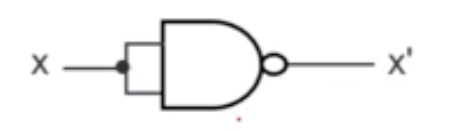

  • $(x\cdot x{)}^{\prime }=x^{\prime }$ → NOT operation achieved!
  •

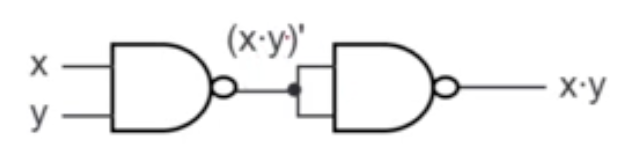

  • $((x\cdot y{)}^{\prime }\cdot (x\cdot y{)}^{\prime }{)}^{\prime }=x\cdot y$ → AND operation achieved!
  •

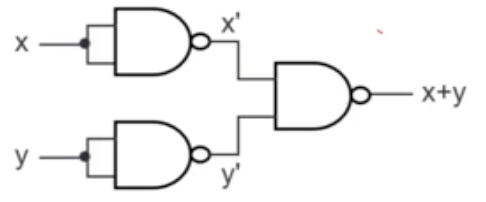

  • $((x\cdot x{)}^{\prime }\cdot (y\cdot y{)}^{\prime }{)}^{\prime }=x+y$ → OR operation achieved!
  •

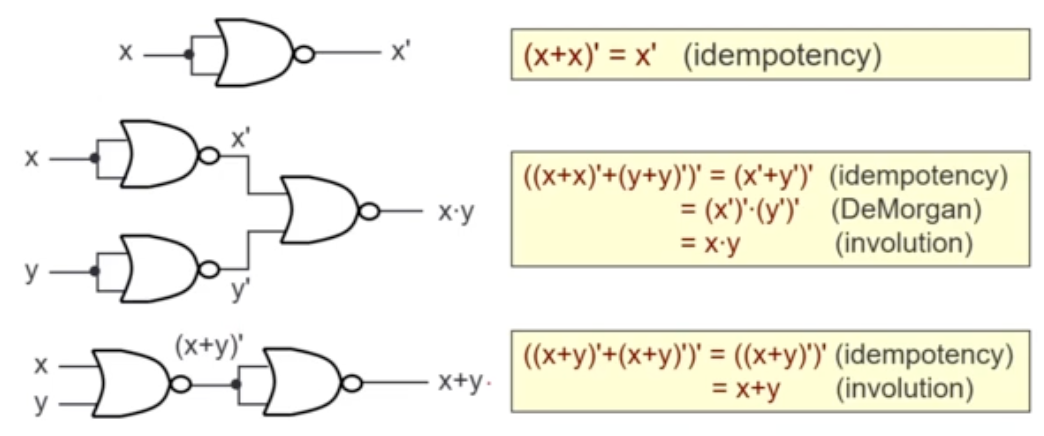

NOR Gate

• is also a complete set of logic!
•

SOP and NAND Circuits

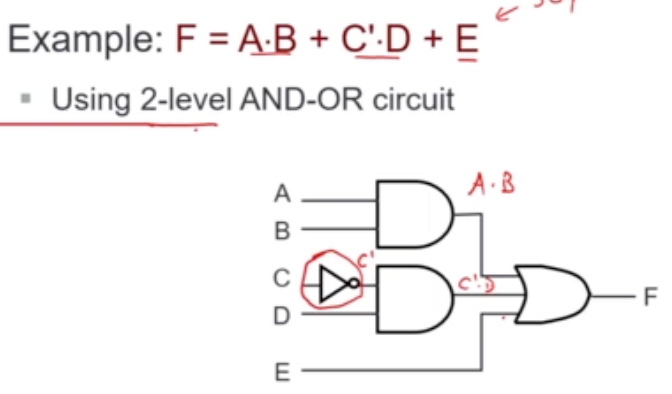

• An SOP expression can be easily implemented using
  • 2-level AND-OR circuit
  •

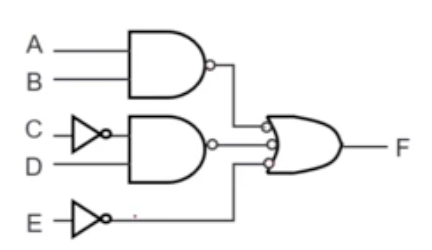

  • 2-level NAND circuit
  •

POS and NOR Circuits

• likewise, a POS expression can be easily implemented using

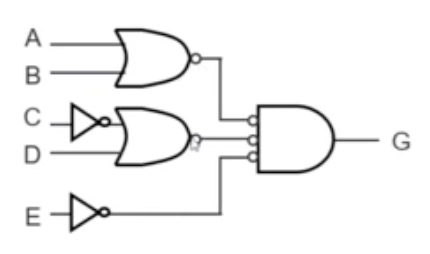

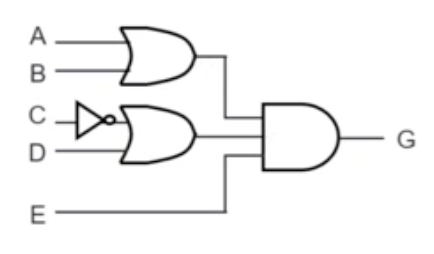

  • e.g. $G=(A+B)\cdot (C^{\prime }+D)\cdot E$
  • 2-level OR-AND circuit
  •
  • 2-level NOR circuit
  •

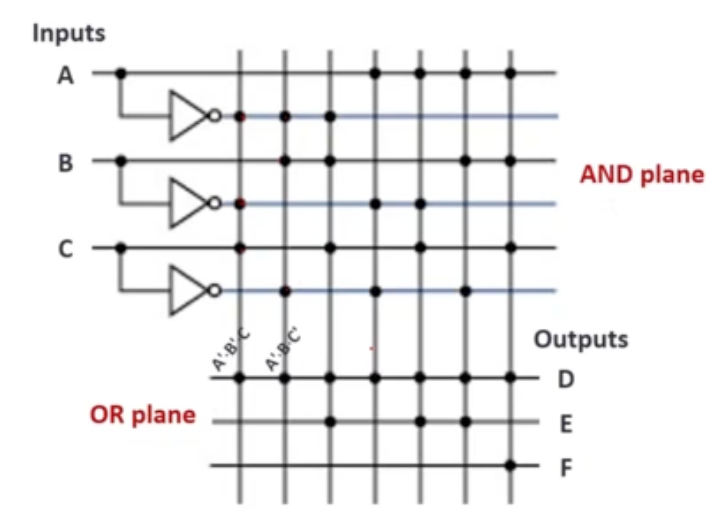

Programming Logic Array (PLA)

A programmable integrated circuit

• implements sum-of-product circuits (allow multiple outputs)

2 Stages

• AND gates = product terms
• OR gates = outputs

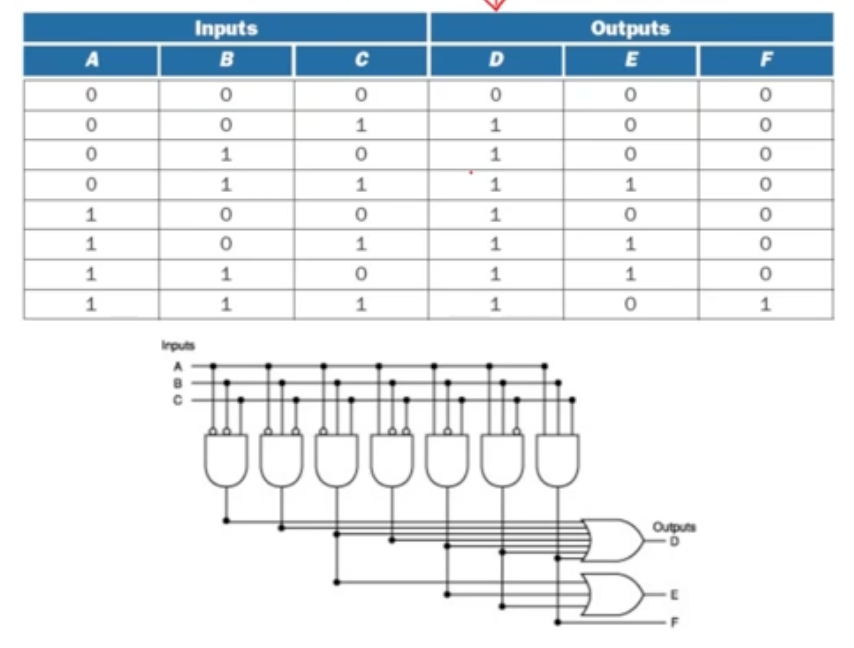

Example

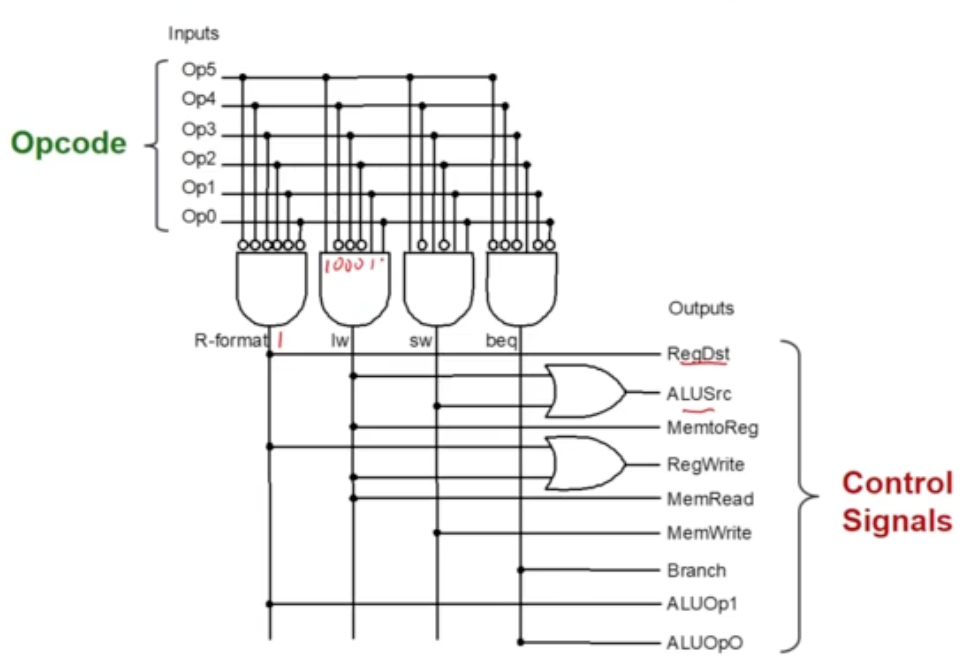

Example: Combinational Circuit implementation in MIPS

Read only Memory (ROM)

• Similar to PLA
  • Set of input (called addresses)
  • set of outputs
  • programmable mapping between inputs and outputs
• Fully decoded: able to implement any mapping
• In contrast, PLAs may not be able to implement a given mapping due to not having enough minterms.
