MIPS (Part I)

Microprocessor without Interlocked Pipeline Stages (MIPS)

Programming Language —(compiled)⇒ Assembly Language —(Assembler)⇒ Machine Language ⇒ Processor (MIPS)

Instruction Set Architecture

Abstraction on the interface between the hardware and the low-level software

ISA contains the set of instruction that the processor can support.
E.g. it is a manual for the processor.

Machine Code vs Assembly Language

Machine Code	Assembly Language
Instructions in Binary	Human readable
Hard and tedious to code	Easier to write than machine code, symbolic version of machine code
May also be written in hexadecimal of a more human-readable format	May provide ‘psuedo-instructions’ as synthetic sugar

Walkthrough of C Code ⇒ Assembly Code

for (i=1; i<10; i++) {
	res = res + 1;
}

Compiles to (not real assembly languagea)

res <- res + 1
i <- i + 1
if i < 10, repeat

Walkthrough of Components

Code and data reside in memory
Transferred into the processor during execution
Problem: Processor is always much faster than the memory.
Hence, temporary storage for values in the processor: registers
- load: move data from memory into register
- store: move data from register into memory
3 Type of instructions
- Memory: Move values between memory and register
- Calculation: Arithmetic
- Control Flow: Change the sequential execution

Registers

Fast memories in processor
A typical architecture has 16 to 32 registers
They do not have data type
Machine instruction assumes that data in register is of the correct type
- add (signed numbers): 32-bit 2’s
- addu (unisigned numbrs): 32-bit unsigned binary
- fadd (floating point): IEE-754

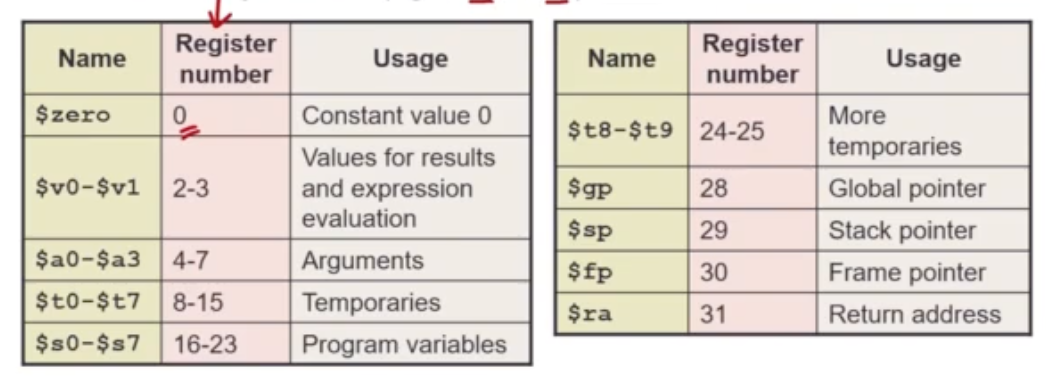

There are 32 registers in a MIPS Processor
- even if u assign the value 5 to register 0, the value will be stored as 0
- should not change/ touch registers 28-31

MIPS Assembly Language

Each instruction executes a simple command

add $s0, $s1, $s2

MIPS Arithmetic operations have 3 operands: 2 sources and 1 destination
- $s0 is the destination (gets the result)
- $s 1 an d$ s2 are the sources
- add is the operation
C Statement → MIPS Assembly language is known as variable mapping
- Variables are mapped to the registers

Arithmetic Operations

Addition

add $s0, $s1, $s2

Subtraction

sub $s0, $s1, $s2

Complex C Code → MIPS

a = b + c - d;

$s 0 - > a,$ s1 → b, $s 2 - > c,$ s3 → d

add $t0, $s1, $s2
sub $s0, $t0, $s3

Use $t 0 t o$ t7 for intermediate results Addition of constant values

addi $s0, $s0, 4

e.g. c code a = a + 4
Immediate values are numerical constants
Constant ranges from $- 2^{15}$ to $2^{15} - 1$
- 16-bit 2s complement number system
subi does not exist because you can use addi with a negative constant
minimize the number of instructions Register Zero, $0 or$ zero
Used for initialisation
e.g. c code :f = g or f = g + 0
MIPS Assembly Code: add $s0, $s1, $zero
Known as pseudo-instruction (move)
- e.g. move $s0, $s1 is actually the MIPS Assembly Code as shown above.
- CS2100 will try to avoid pseudo-instruction

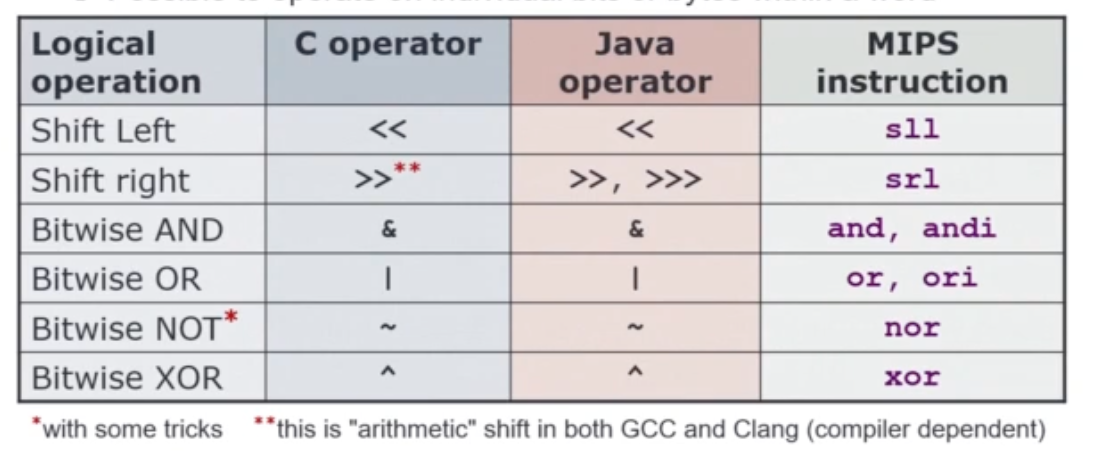

Logical Operations

AND

1 if both a and b are 1. Otherwise, 0 OR
0 if BOTH a and b are 0. Otherwise, 1 NOR
1 if BOTH a and b are 0. Otherwise, 0 XOR
1 if a is not the same as b.

Shifting sll: move all the bits in a word to the left by a number of positions $s0: 1011 1000 0000 0000 0000 0000 0000 1001

sll $t2, $s0, 4

$t2: 1000 0000 0000 0000 0000 0000 1001 0000

the emptied positions are filled with 0s
Maximum number of shifts you can do is 31

srl: move all the bits in a word to the right by a number of positions

same logic as sll

Equivalent Number of bits for sll /srl

sll: multiply by $2^{n}$ where $n$ represents the number of bits shifted to the left
srl: division by $2^{n}$ where $n$ represents the number of bits shifted to the left

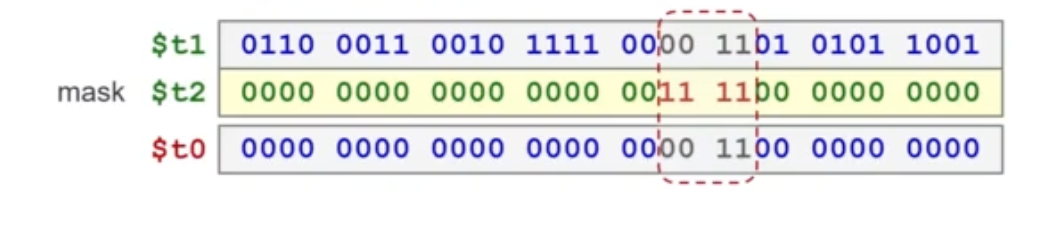

Bitwise AND

and $t0, $t1, $t2

you can put 1111 in the positions you are interested in for $t2
therefore, the output, $t 0 w i ll co p yo v er t h e in t eres t e d p os i t i o n o f$ t1
you are using $t2 as a mask
Masking operation!
has andi instruction

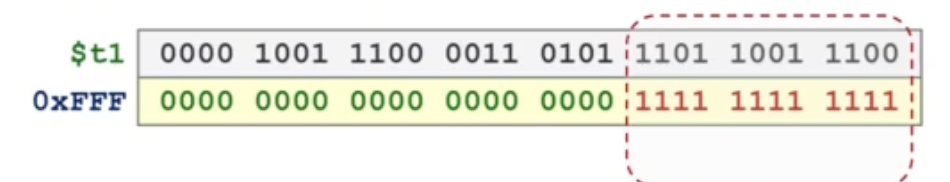

andi $t0, $t1, 0xFFF

Mask over the last 12 bits of $t1

Bitwise OR

force certain bits to 1
ori is available

ori $t0, t1, 0xFFF

$t0: 0000 1001 1100 0011 0101 1111 1111 1111

Bitwise NOR

use nor instruction to do NOT instruction!
- let the variable be 0
- 0 nor 1 → 0
- 0 nor 0 → 1
- nor $t0, $t0, $zero
Why is there no instruction for NOT?
- Keep instruction set small
nori is not present in MIPS

Bitwise XOR

use XOR instruction to do NOT instruction !
- let the variable be 1
- 1 XOR 1 → 0
- 1 XOR 0 → 1
- xor $t0, $t0, $t2 where $t2 is all 1s
xori is present in the MIPS instruction set

Loading a large constant into a 32-bit Register

Consider: $t0 = 1010 1010 1010 1010 1111 0000 1111 0000

New Instruction

load upper immediate: lui

lui $t0, 0xAAAA

Loads the first 16 bits into $t0
$t0: 1010 1010 1010 1010 0000 0000 0000 0000
User ori to load lower 16 bits

ori $t0, $t0, 0xF0F0

$t0: 1010 1010 1010 1010 1111 0000 1111 0000

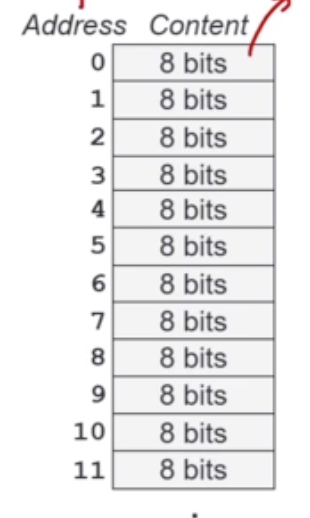

Memory Organisation

Single-dimension array of memory locations

Given k-bit address, the address space is of size $2^{k}$
- e.g. address is 3-bits, it can have $2^{3}$ , 8-bits address space
Address on the right contains one byte (8-bits) in every location/ address

Memory Transfer Unit

Single byte or single word
Single Word
- usually $2^{n}$ bytes
- Common unit of transfer between processor and memory
- word size will normally coincide with the register size, the integer size and the instruction size in most architecture

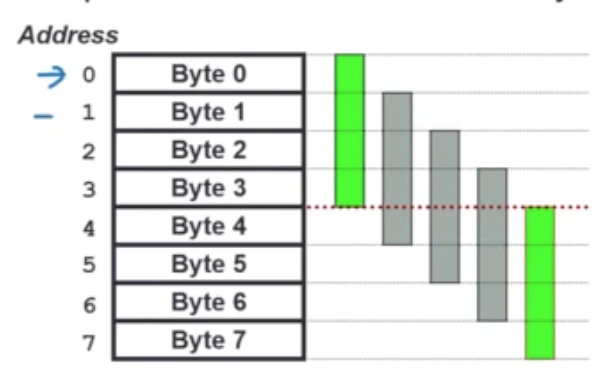

- Word Addressable memory: can only use address 0 and 4
  - Otherwise, will lead to mis-aligned word!
  - How do we check if a given memory address is word-ailgned?
    - Check if address % 4 == 0
    - 4 is the word size (number of bytes)
- Byte Addressable memory: can use all the addresses 0 to 7

Memory Instructions

32 registers, each 32-bit long. Each word is 32 bit long. MIPS = load-store register architecture

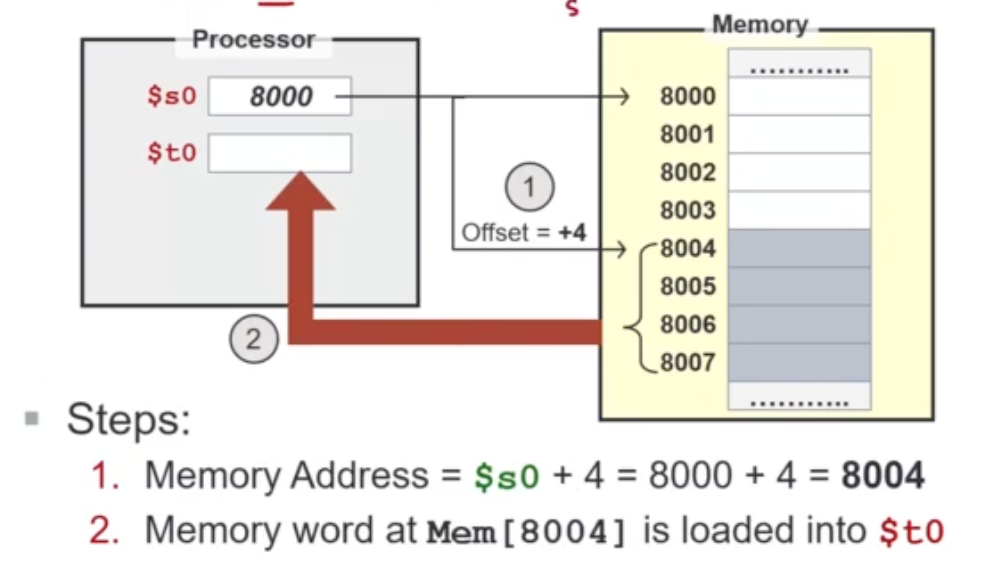

Load Word Memory Instruction

lw $t0, 4($s0)

$t0is the destination, 4 is displacement, $s0 is source
move from memory into the register

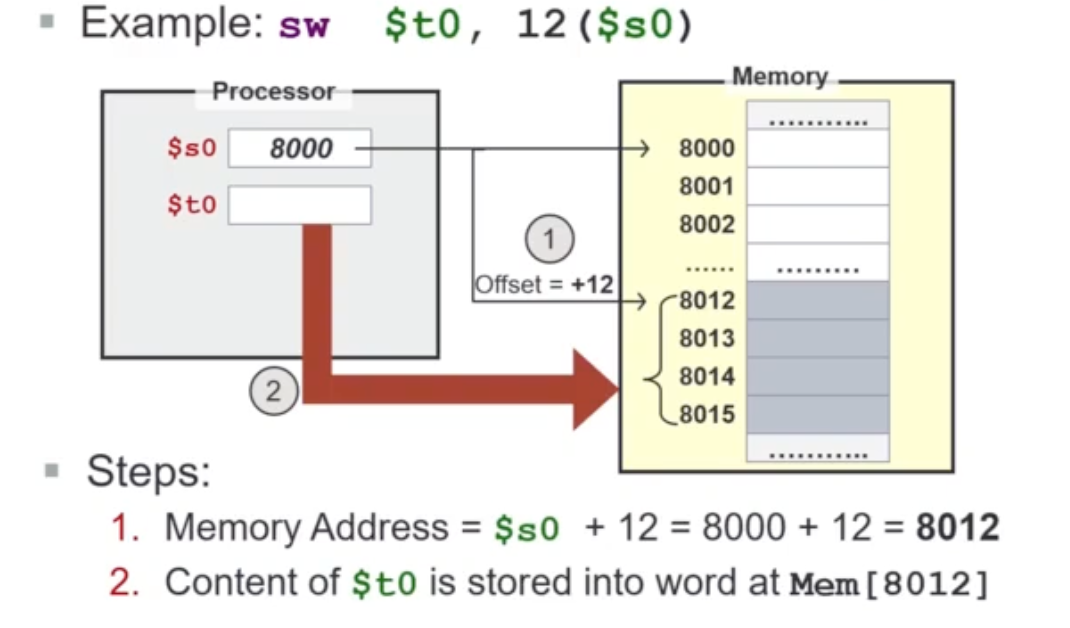

Store Word Memory Instruction

sw $t0, 12($s0)

move from register to memory

Load and Store Instructions

only load and store instructions can access data in memory
e.g. c code

A[7] = h + A[10]
// assign A -> $s3, h -> $s2

MIPS Code

lw $t0, 40($s3)
add $t0, $s2, $t0
sw $t0, 28($s3)

remember: arithmetic operands (for add) are for registers, not memory!
MIPS disallows loading/ storing unaligned word using lw/sw
- pseudo-instructions: unaligned load word, unaligned store word ulw,usw

Other Instructions

load byte (lb): loads a singular byte into the register
store byte (sb): stores a singular byte from the register into the memory address
- takes the lowest byte of data from register
note that offsets no longer needs to be a multiple of 4 (unlike words)

**Key Concepts: **

Registers do not have types
- add $t2, $t1, $t0: $t1 and $t0 should have 32-bit 2s bits
- lw $t2, 0($t1): $t1 should contain address
Consecutive words addresses in machines with byte-addressing do not differ by 1
- to go to the next word, need to increment the address in a register by the sie of the word

Swapping Elements using MIPS

Sample Code

swap( int v[], int k)
{
	int temp;
	temp = v[k];
	v[k] = v[k+1];
	v[k+1] = temp;
}

Variables Mapping

k -> $5
Base address of v[] -> $4
temp -> $15

MIPS Code

sll $2, $5, 2 (calculate the offset of v[k])
add $2, $4, $2 (computes address of v[k] and stores in $2)
lw $15, 0($2) (loads v[k] into register)
lw $16, 4($2) (loads v[k + 1] into register)
sw $16, 0($2)
sw $15, 4($2)

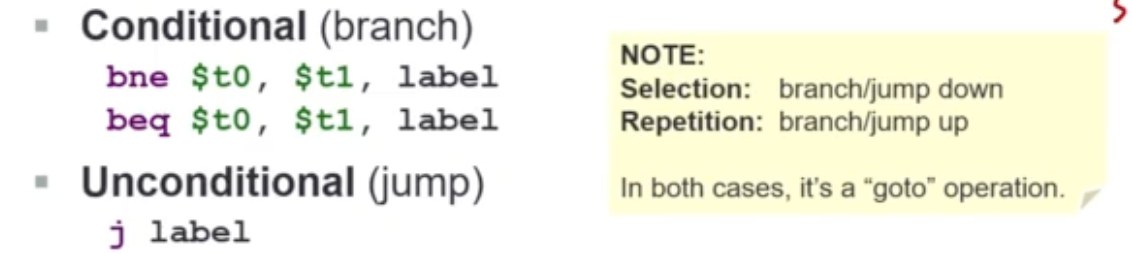

Making Decisions

bne: Branch if not equal
- check t0 and t1, if both are equal, it will go to the next instruction after bne
- else it is taken to branch
beq: branch if equal
- check t0 and t1, if both are equa, it will go the label
- else it will go to the next lne
Uncnditional(jump): j label
- technically equivalent to beq $s0, $s0, L1
- Will jump to the label

Label is an anchor in the assembly code to indicate point of interest.

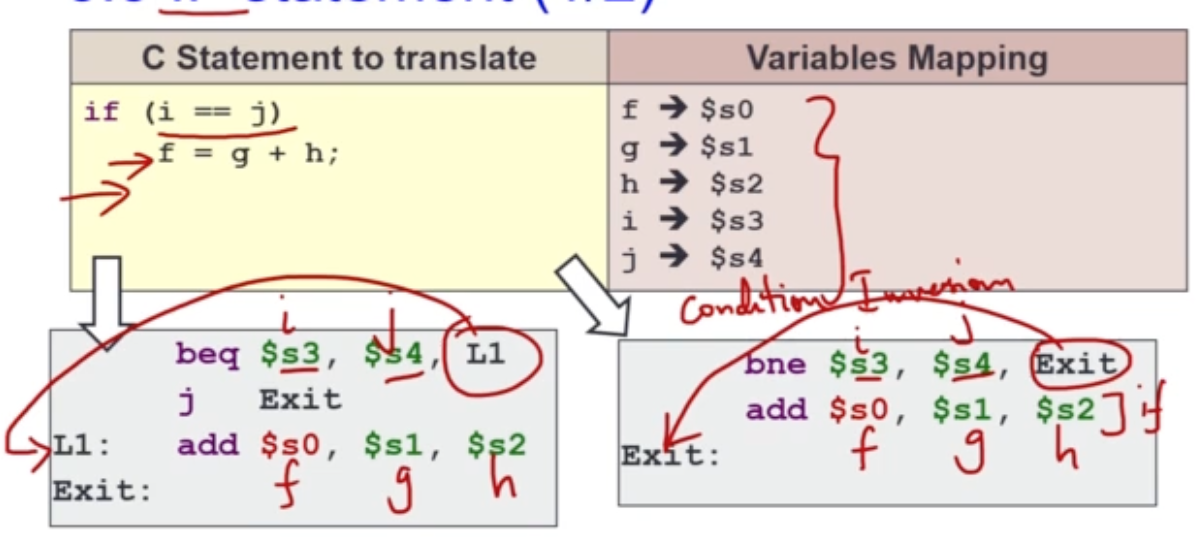

Writing IF Statements in MIPS

try to invert the condition for a shorter code

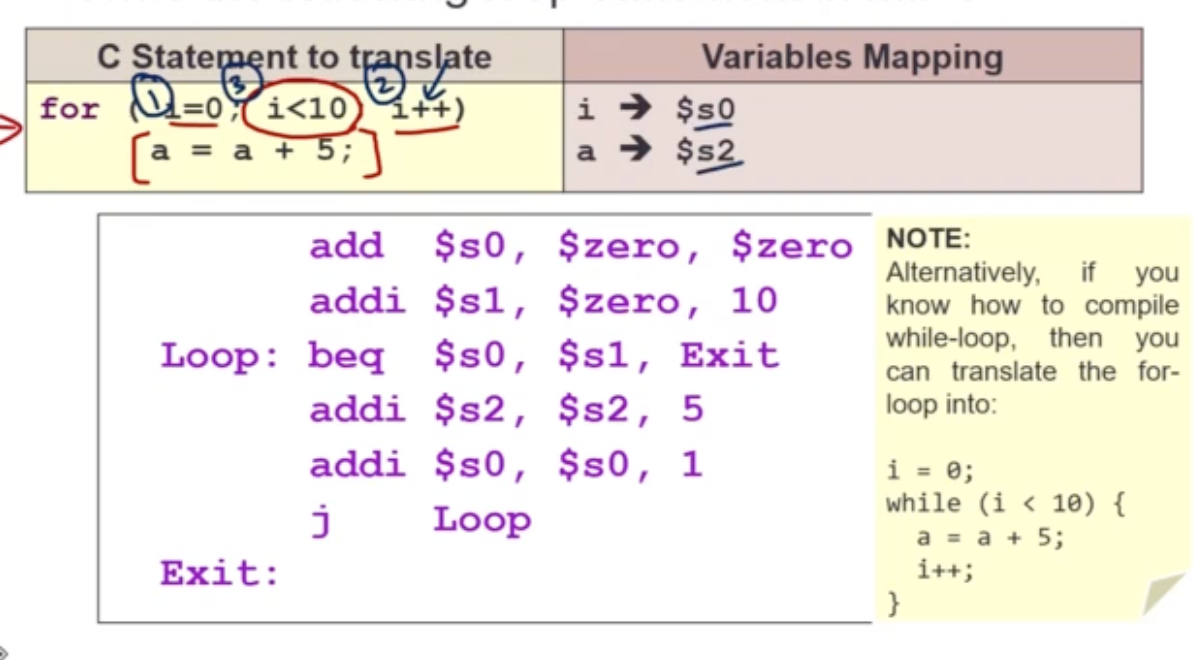

Writing loops in MIPS

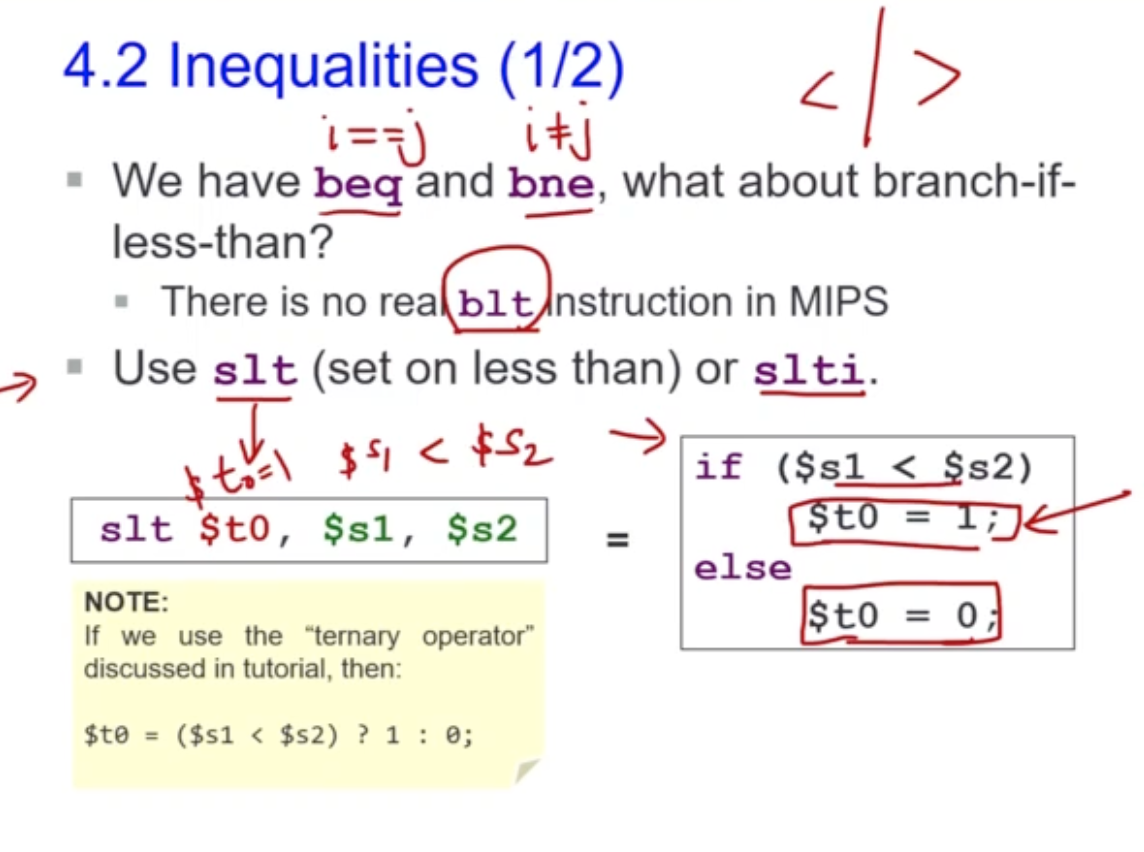

Inequalities

check if t0 == 1 afterwards to see if s1 is < s2
slt and slti

Array and Loop

result = 0
i = 0;

while (i < 40) {
	if (A[i] == 0) {
		result++;
	}

	i ++;
}

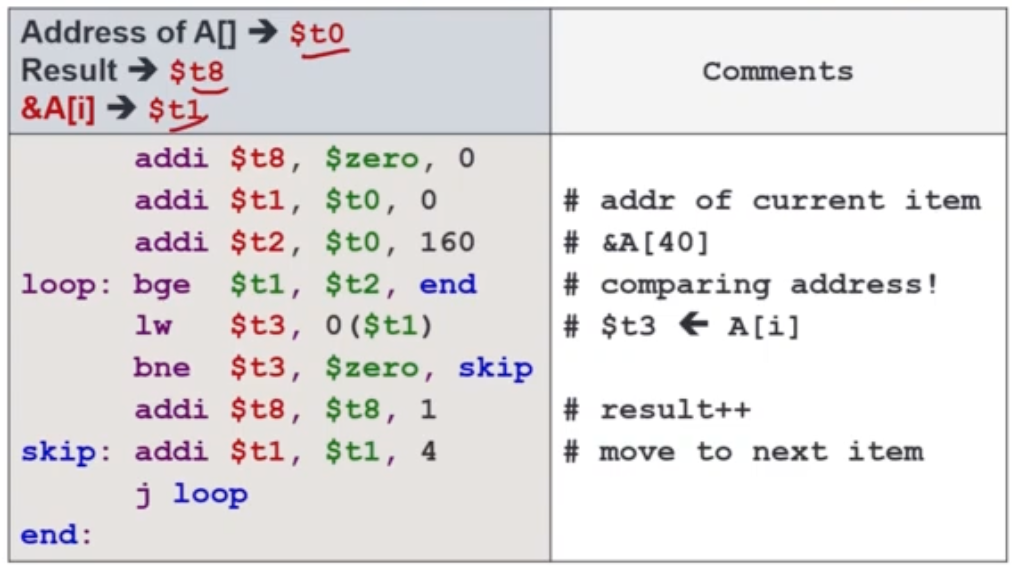

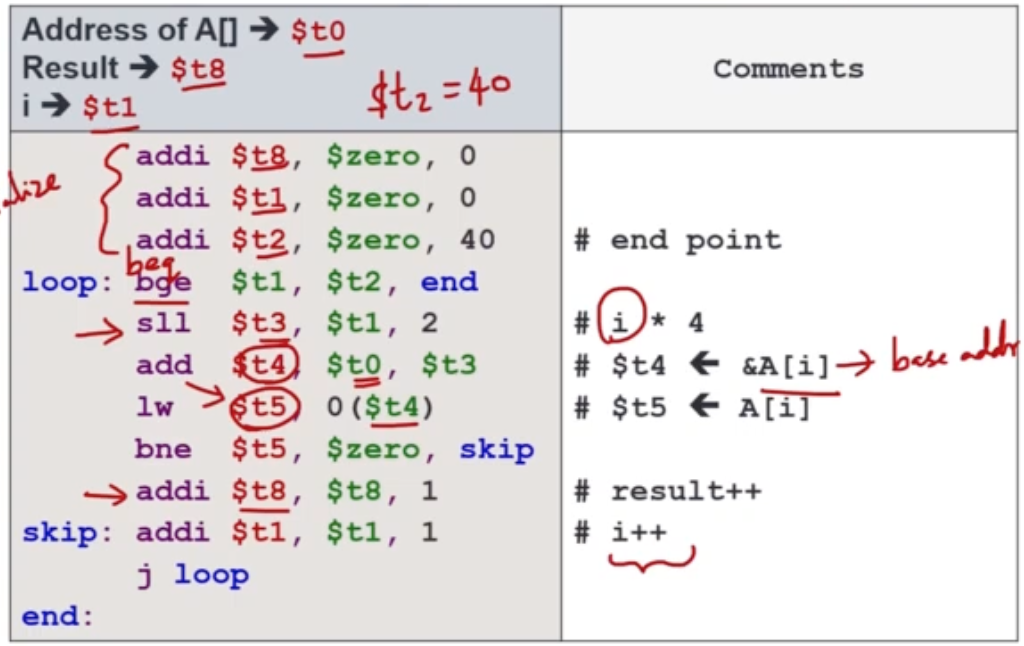

Using Index Using Pointers (Address)
