MIPS (Part II)

Extension of MIPS

Encoding

Basics

• Each MIPS instruction has a fixed-length of 32 bits
• challenge: reduce complexity of processor design → instruction encodings should be as regular as possible

Classification

• Instructions are classified according to their operands
• R-Format
  • Instructions which use 2 source registers and 1 destination register
  • e.g. add, sub, and, or, nor, slt, etc
  • srl, sll included (will not have rs register)
• I-Format
  • Instructions which use 1 source register, 1 immediate value and 1 destination register
  • e.g. addi, andi, ori, slti, lw, sw, beq, bne
• J-format
  • j instruction uses only one immediate value

MIPS Reference Sheet

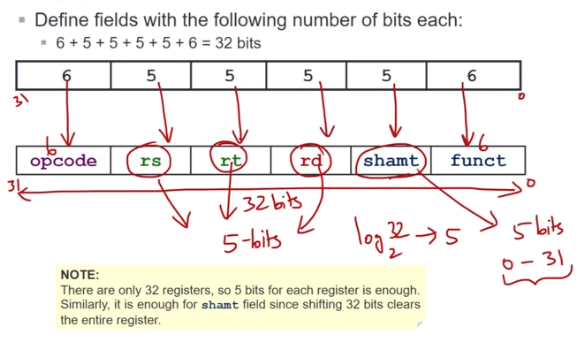

R-Format

• opcode: type of instruction
  • partially specifies the instruction
  • 0 for all R-Format Instructions
• rs: register source
• rt: target register (register that contains the second operand)
  • srl, sll will use this field to store it’s operands
• rd: register destination
• shamt: shift amt (for shift operations)
  • set to 0 in all non-shift instructions
• funct: function call
  • combined with opcode exactly specifies the instruction

Example: Encoding to machine code

Mips: add $8, $9, $10

	opcode	rs	rt	rd	shamt	funt
decimal	0	9	10	8	0	32
binary	000000	01001	01010	01000	00000	100000
which equates to 0x012A4020

I-Format

• contains immediate values

opcode	rs	rt	immediate
6bits	5bits	5bits	16bits

• total is still 32bits `
• no funct field, opcode will uniquely specify an instruction
• rs: source register
• rt: register to receive the result
• immediate: treated as a signed integer (2’s complement)
  • can represent up to $2^{16}$ different values
• This is why we cannot put 32-bit constants in the instruction: the instruction itself is 32-bit wide

Example: Encoding to machine code

MIPS: addi $21, $22, -50

	opcode	rs	rt	immediate
decimal	8	22	21	-50
binary	001000	10110	10101	1111111111001110
which equates to 0x22D5FFCE

lw $9, 12($8) *** 12 would be immediate value

Other I-Format Instructions

beq, bne

New register: Program Counter (PC)

• a special register that keeps the address of the next instruction to be executed in the processor
• Also uses the I-Format!
• opcode: beq/ bne
• rs and rt speciy registers to compare
• immediate can’t store address!
  • immediate is 16 bits
  • address is 32 bits
• immediate: the number of words (multiplied by 4) to “jump over”
  • PC = PC + n * 4
  • instructions are word-aligned
  • 2s complement
  • 16 bit

Branch Calculation for PC-Relative Addressing

• If branch is not taken: PC = PC + 4 (Address of the next instruction)
• if branch is taken = (PC + 4) + (immediate x 4)

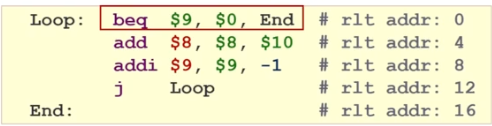

Example Encoding for branch instructions

	opcode	rs	rt	immediate
decimal	4	9	0	3
binary	000100	01001	00000	0000000000000011

J-Format

• for branches, PC-relative addressing was used
  • did not need to branch too far
• For general jumps(j)
  • we may jump to anywhere in memory
• The ideal case is to specify a 32-bit memory address to jump to
  • but instruction size is already 32-bit 😢

opcode	target address
6bits	26bits

• we only have 26 bits of 32-bit address
  • Optimisation:
  • jumps are to word aligned addresses ⇒ last 2 bits are always 00
  • therefore, we can specify 28bits of 32-bit address
• We cannot jump to anywhere in memory, but it should be sufficient most of the time

Summary: To build back 32 bits:

• First 4 bits: Take MSB of PC + 4
• Next 26 bits: As specified in target address
• last 2 bit: 00

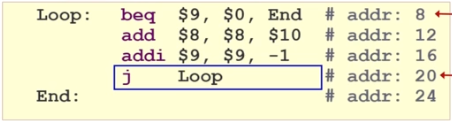

Example

	opcode	target address
decimal	2
binary	000010	0000000000000010

Addressing Modes

• different ways to calculate the final address of the operands

Register Addressing

• operand is a register
• e.g. rs, rt

Immediate Addressing

• operand is a constant within the instruction itself

Base Addressing (displacement addressing)

• operand is at the memory location whose address is sum of a register and a constant in the instruction
• displacement by number of bytes

PC-relative addressing

• address is sum of PC and constant in the instruction
• displacement by the number of address

Pseudo-direct addressing

• 26-bit of instruction concatenated with upper 4-bits of PC(j)

Summary

• Branches use PC-relative addressing
• Jumps use pseudo-direct addressing

Notes

Instruction encoding uses register numbers. See Registers $s0->16$s1 → 17
